ProductsiWeigh
iWeigh®
The connected on-board scale

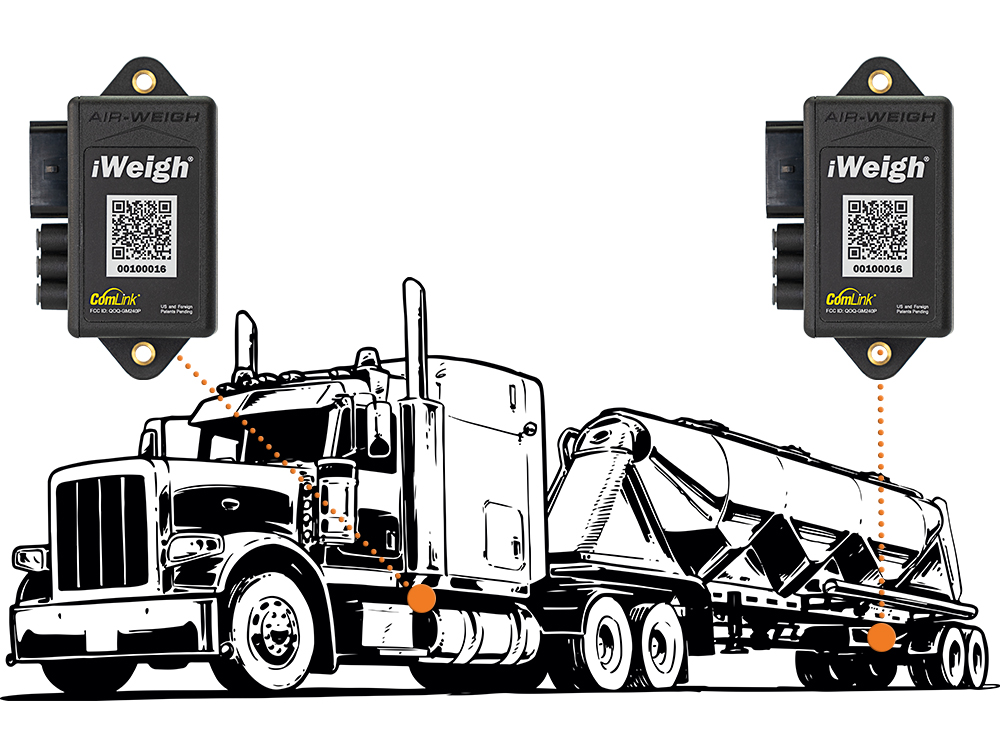

iWeigh fits trucks, trailers and tractor-trailers, including doubles, B-trains and heavy haul, on air ride or spring suspension. Each weight goes to the driver's phone, the truck's CAN bus and the Air-Weigh cloud as the truck loads.
The Industry's Most Advanced On-Board Scale Platform

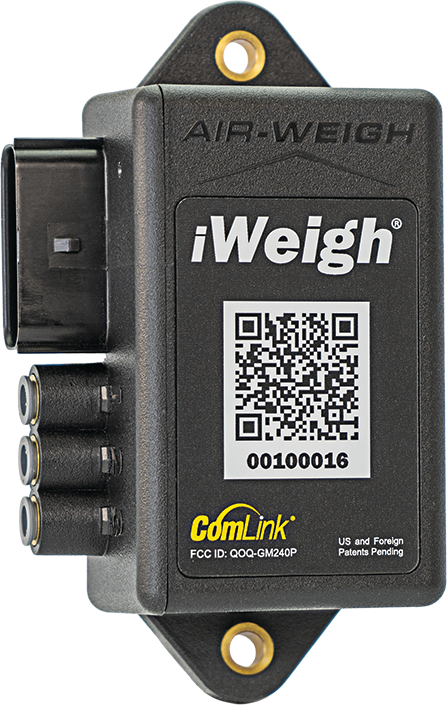

Take weight data into your own hands! Our iWeigh® CAN bus and Bluetooth®-connected on-board scale platform was developed from the ground up for today’s tech-advanced vehicles. iWeigh® was designed for seamless connection and compatibility with our industry-leading LoadMaxx® series for both tractors and trailers. This new platform brings current LoadMaxx® fleets into the future by enhancing on-board scale functionality. Simply add an iWeigh® scale to a tractor or trailer, and it automatically pairs with the LoadMaxx® scale on the corresponding equipment to add vehicle weight and GVW. Our free app provides the fastest and most secure Bluetooth® connection in real time, allowing drivers to view weights from anywhere inside or outside the vehicle.
iWeigh® for Tractor/Trailers Features
- Auto-pairing of LoadMaxx® trailers when iWeigh® is installed on tractors within a fleet

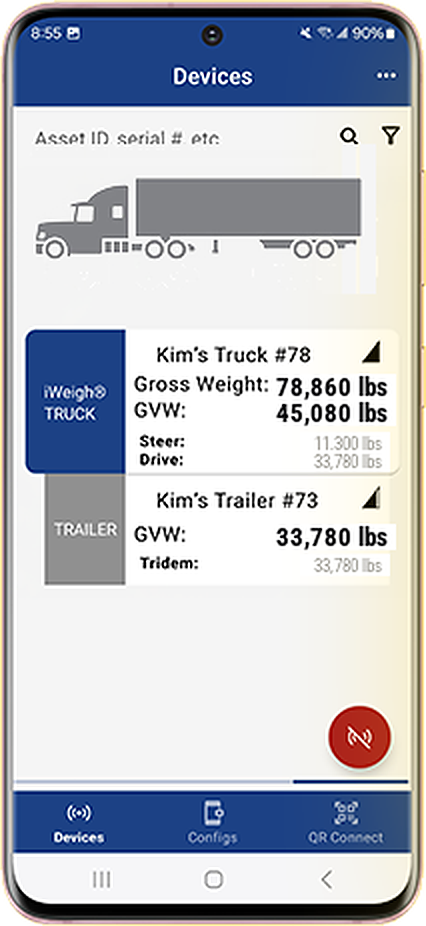

- Air-Weigh App displays steer, drive, trailer, and GVW details on smart devices via Bluetooth®
- Remote technical assistance – iWeigh® technology can quickly pinpoint calibration errors or technical issues to keep your scales in top shape
- iWeigh® automatically updates trailer data to the LoadMaxx® display in the cab
- Built to expand – iWeigh® can be updated over-the-air for future features
- Works with both mechanical & air suspensions
- Integration capabilities through SAE J1939 and/or Bluetooth®
- Secure data – weight data visible through the free Air-Weigh® App
iWeigh® for Tractor/Trailers Specifications
Accuracy
99+%
Air Suspension
Accuracy
97+%
Mechanical Suspension
Weights
20lb.
Weights Displayed in 20 lb. Increments
Limited Warranty
3-Years
Made & Supported in USA
Display Options
View Weights on Any Device with the Air-Weigh® App

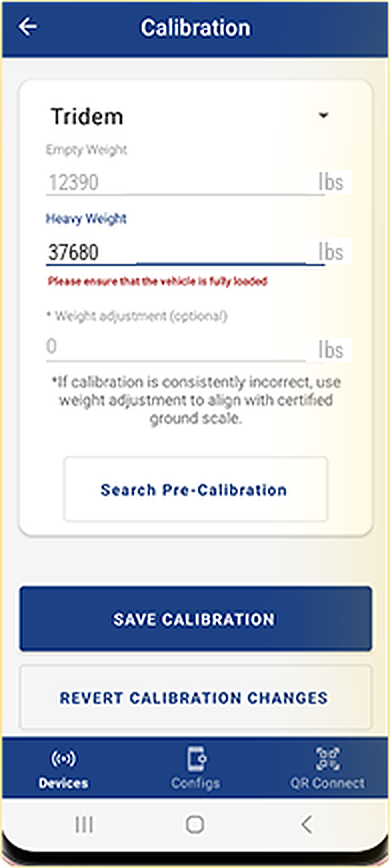

Calibration
Dual-Point Calibration
Air-Weigh® App
Free App Available - Google Play Store - Apple App Store
Operating Temperature
-40°F (-40°C) To +185°F (+85°C)
Integration
SAE J1939 CAN Bus & the Latest Bluetooth® 5.4 Security Protocols
Weights
Weights Displayed in 20 lb. Increments
Accuracy
99+% – Air Suspension
97+% – Mechanical Suspension
Limited Warranty
3-Years, Made & Supported in USA
Frequently Asked Questions
Air-Weigh App F.A.Q.
Where do I download the Air-Weigh App?
iWeigh® offers a free mobile app for Android and IOS devices. Simply go to the app store on your smart device and search for ‘Air-Weigh’.
What is the cost of the iWeigh® App?
The app is free.
How does iWeigh® work?
iWeigh® uses sensors to measure air pressure (for air ride suspensions) or a highly-engineered deflection sensor to measure micro-flexing of the axle group (for mechanical suspensions). By calibrating the system with known empty weight at time of the and known loaded weight, iWeigh® uses the saved calibrated data to accurately calculate and display the current weight of the vehicle.
The scale must be calibrated before use. iWeigh® can display weights in pounds or kilograms.
After calibration, simply view weights on the Air-Weigh app or through telematics. The weight data will update in real time.
How accurate is iWeigh®?
iWeigh® boasts industry-leading accuracy. For air-ride suspensions, it is 99% accurate (+/- 300 lbs.), while for mechanical suspensions, it offers 97% accuracy (+/- 900 lbs.).
iWeigh® displays weights in 20lbs. or 20kgs. increments.
How many sensors can iWeigh® accommodate?
iWeigh® can accommodate up to 3 air sensors and 4 deflection sensors at once.

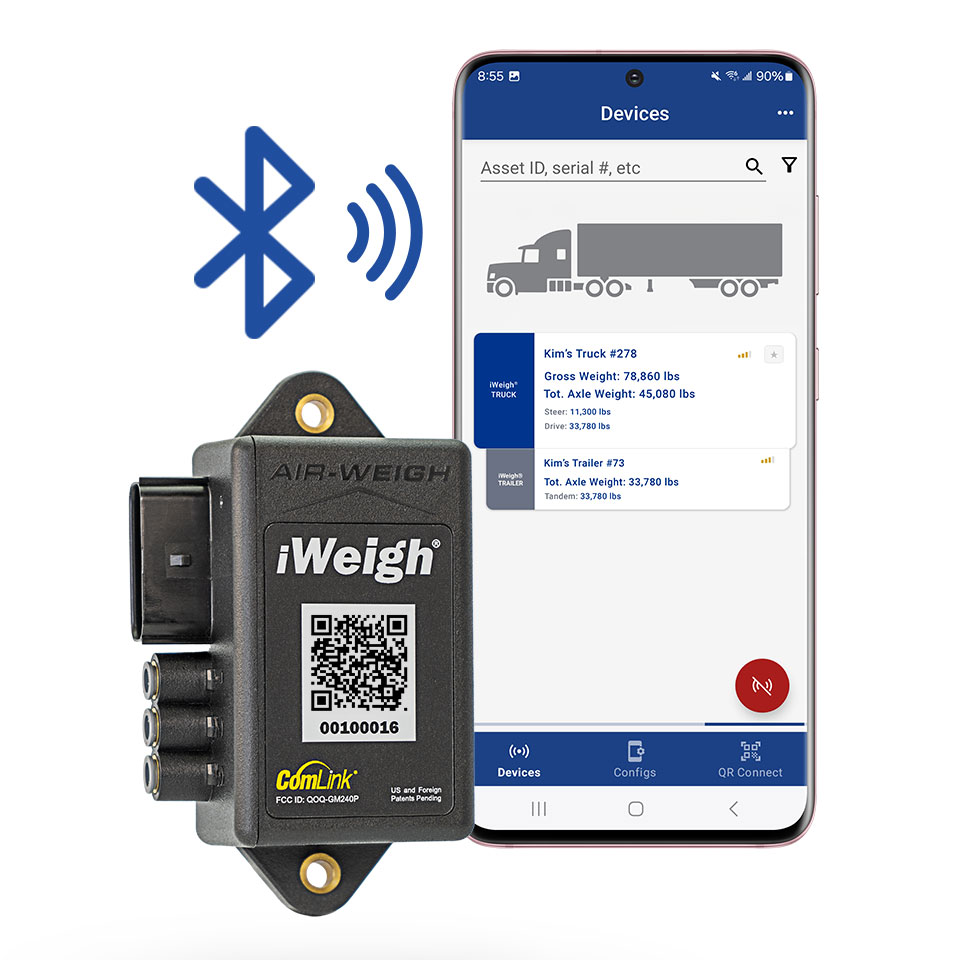

Can I view weight information on my phone?
Yes, iWeigh® offers a free mobile app for smart devices . This app allows you to conveniently view weight readings directly on your compatible smartphone or tablet.
Is it recommended to house the scale in a protective case or box, or can it be exposed?
iWeigh® is designed to be mounted externally, with a IP67 rated housing tested to stringent SAE standards. A protective case or box is not required.
How far is iWeigh® communication range?
The range for iWeigh® is up to 100 feet in line-of-sight.
How long is the average iWeigh® installation?
This time will vary depending on sensors and suspensions set up. An average iWeigh® installation is around 1 – 2 hours for air sensor installation, and calibration is 1-2 hours. Mechanical deflection sensors may take 3 to 4 hours, with 1 to 2 hours for calibration.
How do I assign a unique name to my iWeigh® scale?
Open the Air-Weigh® app. When setting up a new scale during the configuration process, the user will have the option to change the ‘Asset ID’ of the scale. The ‘Asset ID’ is the user-friendly scale name.
Where is my iWeigh® scale manufactured?
Air-Weigh designs, manufactures, and supports our products, including iWeigh®, at our headquarters in Eugene, Oregon, USA. Air-Weigh is certified and adheres to ISO 9001 standards.
How can I purchase an iWeigh® scale?
Air-Weigh offers multiple buying options to integrate our advanced on-board scale systems into your fleet: OEM Installation on new trucks, buying from our extensive dealer network.
Visit https://www.air-weigh.com/#how-to-buy for more information.
Where can I find support for my iWeigh® scale?
Air-Weigh provides comprehensive support. You can reach the team:
By phone (toll-free): (888) 459-3247
By email: Support@Air-Weigh.com
Through the website chat
Support Hours are Monday through Friday, 7 AM - 4 PM Pacific Time (excluding holidays).
How long is my limited warranty for my iWeigh® scale?
iWeigh® is covered under Air-Weigh’s limited warranty for 3 years from date of purchase. Air-Weigh warrants that our products will be free from defects in material and workmanship under normal use, service, and conditions with proper maintenance over that period.For more information visit our warranty page on our website at: https://www.air-weigh.com/limited-warranty/
