TRANSFORM YOUR FLEET
Whether you need your vehicle’s gross vehicle weight or your commercial customer’s individual container content weight, our refuse scales will help you accomplish your business goals. We keep your refuse fleets operating efficiently and profitably.
BINMAXX
A profitability tool for fleet managers of front-end loaders looking to manage individual commercial container content weight.
BINMAXX CLOUD
Intuitive, economical cloud based software to store and manage BinMaxx weight data back at the home office
GROSS VEHICLE WEIGHT
Know your vehicle’s steer, drive, GVW, and Net Payload with our suspension mounted LoadMaxx and QuickLoad scales.
Comes with all the features you need

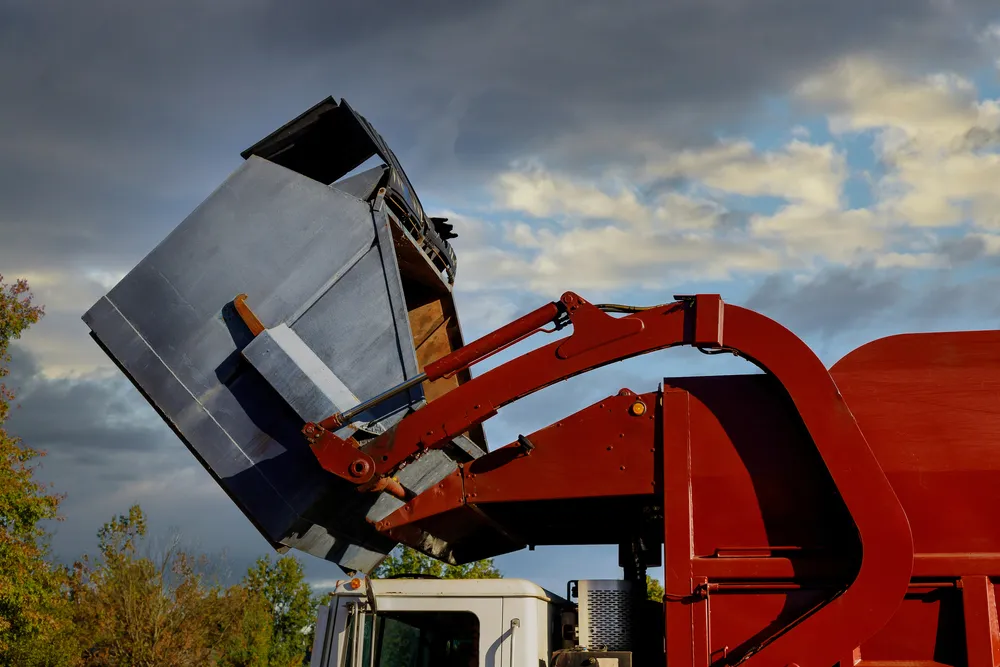

BinMaxx is designed for front end loader garbage trucks. Sensors are mounted to the arms of the vehicle making BinMaxx incredibly durable compared to fork mounted scale systems. BinMaxx increases profitability by providing individual commercial container content weight, allowing you to easily identify non-profitable commercial accounts.
- Arm mounted deflection sensors
- Designed for durability in the refuse environment
- Language options: English, Spanish, French, and German
- Temperature compensation, accurate weights from -40 F to 185 F
- Menu based setup
- PIN protected calibration
- Integration with 3rd party onboard software capabilities
WANT TO KNOW YOUR BIN WEIGHT?
TECH SPECS & FAQS
BINMAXX SCALE FEATURES
- Measures FEL individual commercial container content weight
- Menu-based setup with PIN-protectable settings
- Accuracy is not affected by altitude or humidity
- Optional printer to record all or selected bin weights
- Dual point calibration
TECHNICAL SPECS FOR BINMAXX
- Arm-mounted, weigh-in-motion sensors
- Weights displayed: lift # and bin weight

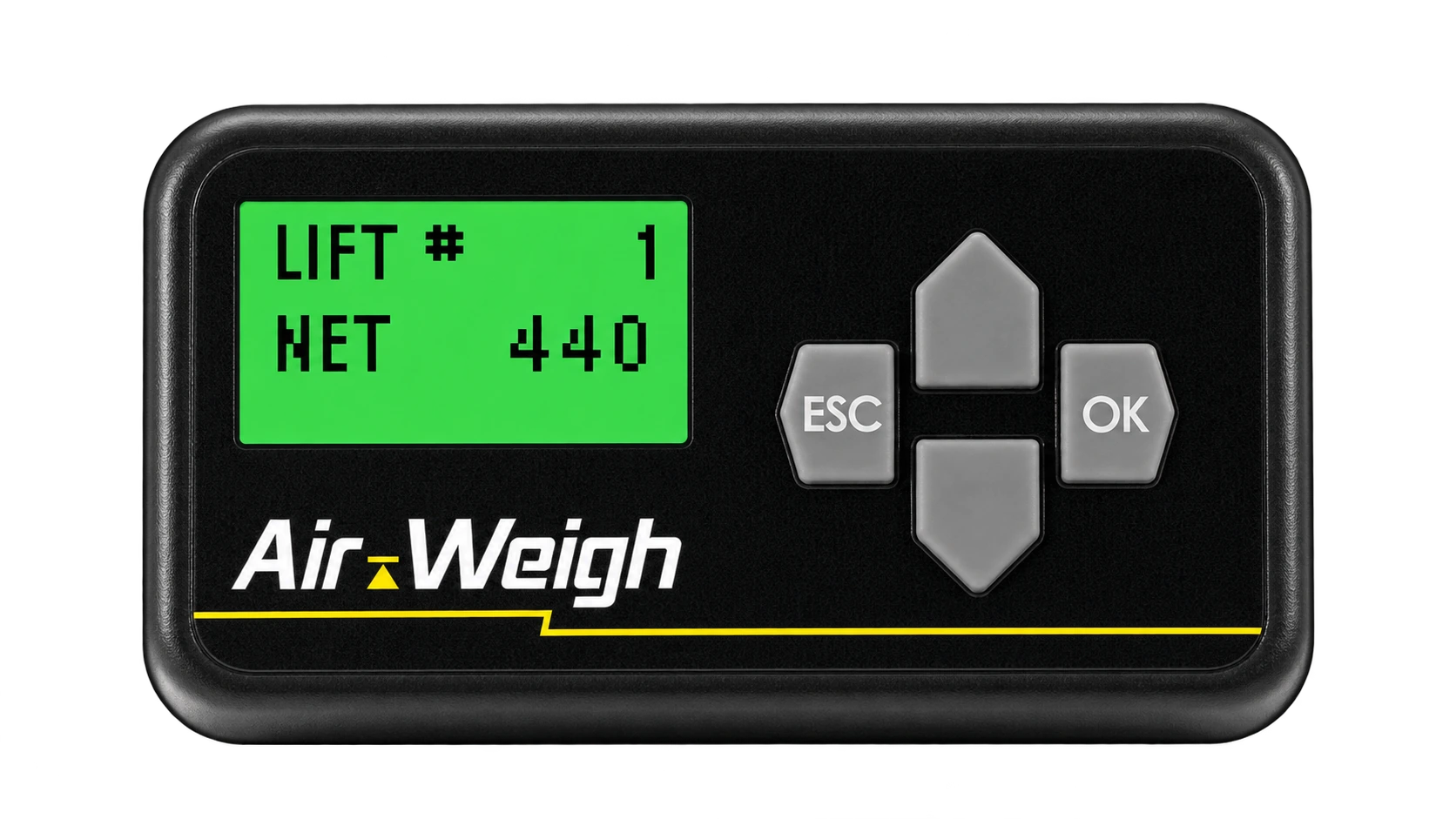

- Backlit digital LCD
- Weight increment of 20 lbs
- Operating Temperatures: -40 deg to 85 deg C; -40 deg to + 185 deg F
- 9-32V dc
- High precision digital deflection sensors
- Includes J1939 and serial data interface for connecting to OBC
4 WAYS TO DOWNLOAD DATA
BinMaxx can be used in conjunction as an intuitive, economical solution for commercial waste haulers to revolutionize the way they look at customer retention and acquisition. We are proud to provide a number of ways for fleet managers to see the information provided by the BinMaxx scale. Here are four ways to access this valuable information.
USE BINMAXX CLOUD
BinMaxx Cloud securely stores lift data and is easily accessed from any computer or smart device. Download detailed lift reports, manage pick up and dump rates, and view customer information.
YOUR FLEET MANAGEMENT SOFTWARE
Air-Weigh is proud to integrate with several third-party fleet management software providers. Transfer valuable weight data back to the home office effortlessly using your existing on-board computer. View our integration partners here.
USE THE PRINTER
BinMaxx comes with an optional in-cab printer that can record and print daily lift data. A driver can easily print weight reports for simple data recording and management.
WRITE IT DOWN
BinMaxx provides all of the weight data on an easy-to-read in-dash display making it simple for drivers to view, record, and track each lift by simply writing it down in their log book.
I NEED HELP TROUBLESHOOTING MY SCALE
We recommend you contact our customer support team at 888-459-3247 anytime you need help with your scale.
HOW DO I USE MY SCALE?

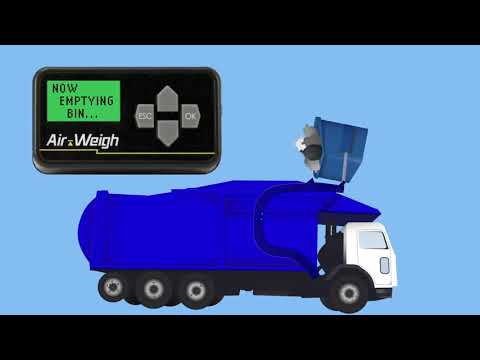

BinMaxx’s on-screen menu makes it easy to set up and operate your scale. Drivers can learn to use BinMaxx scales in just a few minutes. To weigh a container, the driver lifts the container, empties it, and returns it to the ground. The display shows the current lift # and net weight of the container. After each lift, the driver can simply drive to the next bin and complete the lift without pushing buttons on the scale. To document the lift with a weight receipt, the driver needs only to push a single button on the display.
HOW DOES MY SCALE WORK?
The BinMaxx scale system was designed for refuse front-end loader vehicles. Your installer will have mounted deflection sensors and brackets on the arms along with proximity switches underneath the truck. These are used to establish a measurement window to dynamically weigh-in-motion full containers.
BINMAXX CLOUD
MANAGE CUSTOMER PROFITABILITY
BinMaxx Cloud provides all of the BinMaxx features along with the ability to transmit lift and weight data from the vehicle to an office PC or smart device via a wireless communication link. Data is collected, uploaded, and securely stored on the cloud with virtually no driver effort. This means the home office can analyze valuable weight data and route information to assess and manage customer profitability.
- No monthly fees / No storage fees
- Access data securely and easily
- Log in from any computer or smart device
- View customer information & pickup location, time & weight
- No driver interaction
- Track container content weight, pickup fees, and dump rates
- Download detailed lift reports as spreadsheets and PDFs
- User-friendly and intuitive
Contact Us
Contact us now, and we’ll reach out and discuss how our refuse scales can work for you!
UNPARALLELED SUPPORT
Air-Weigh is committed to providing superior service and support. We have a dedicated support team ready to answer your installation and operation questions. All Air-Weigh scales are covered by a three-year limited warranty.
